Power:10W
Cut-out: 80×80mm
Beam angle:15/24/36/45°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed
Don’t have a business email? Click here!
Don’t have a business email? Click here!

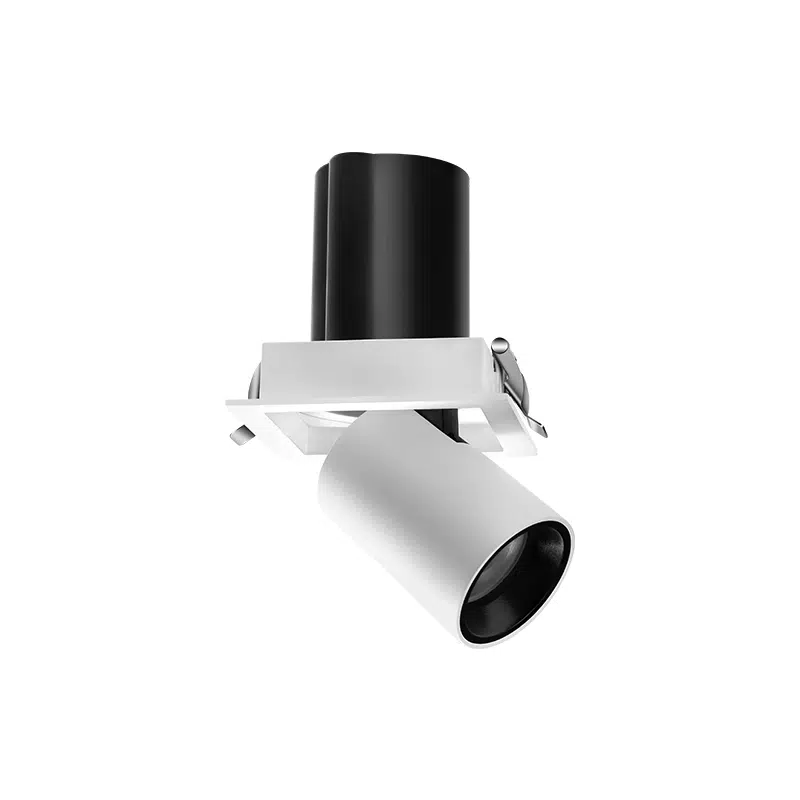

Overview | Model |
SD8031080S |
|---|---|
| Power |
10W |
| Beam Angle |
15/24/36/45° |
| Cut-Out |
80×80mm |
| Installation |
Recessed |

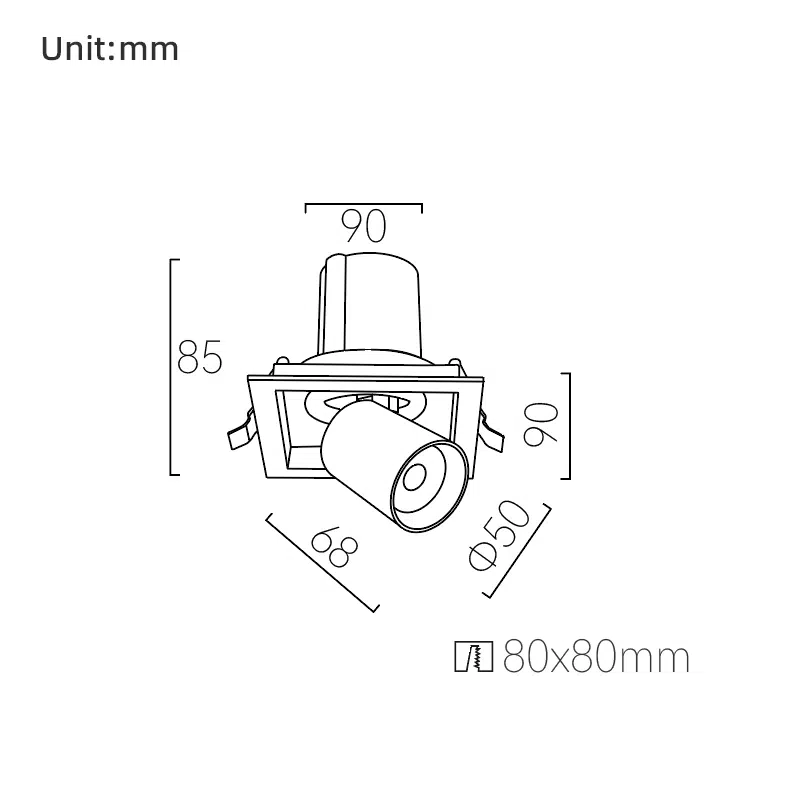

| Dimension |
90×90×H85mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
700lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 250mA |
| Model |
SD052068R |
|---|---|
| Power |
12W ,8W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
Φ68mm |
| Installation |
Recessed |
| Dimension |
Φ75×H79mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
640lm-960lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 200mA/300mA |
| Model |
SC6082115R-R |
|---|---|
| Power |
35W |
| Beam Angle |
15°/24°/36°/60° |
| Cut-Out |
Φ115-125mm |
| Installation |
Recessed |
| Dimension |
Φ138×H105mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
3100lm / 3500lm(HE) |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 800mA |
| Model |
SD042075R |
|---|---|
| Power |
12W ,15W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
75x75mm |
| Installation |
Recessed |
| Dimension |
82×82×H115mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
960lm/1200lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA/350mA |
| Model |
SD8071100R |
|---|---|
| Power |
18W |
| Beam Angle |
15°/30°/45° |
| Cut-Out |
Φ100mm |
| Installation |
Recessed |
| Dimension |
Φ120×H95mm |
| CCT |
3000K ,4000K ,6000K |
| CRI |
80Ra ,90Ra |
| Luminous Flux |
1440lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 450mA |
| Model |
SD8111115S |
|---|---|
| Power |
32W |
| Beam Angle |
27°/31°/40°/50° |
| Cut-Out |
115x115mm |
| Installation |
Recessed |
| Dimension |
129×129×H80mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
2500lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 800mA |
