Power:32W
Cut-out: Φ145mm
Beam angle:15/24/36/50°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed
Don’t have a business email? Click here!
Don’t have a business email? Click here!
Overview

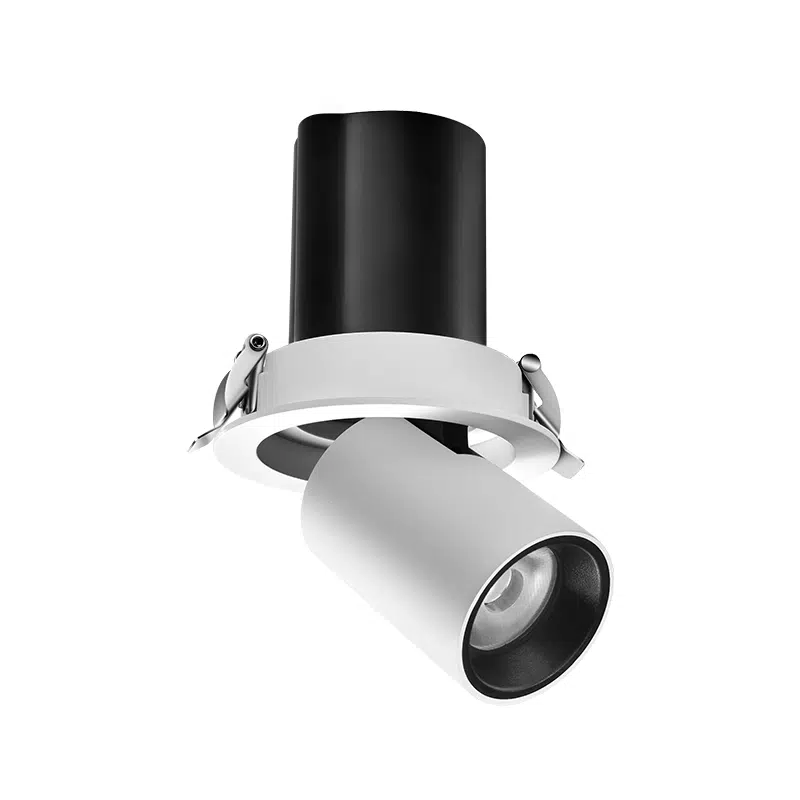

| Model |
SD8031145R |
|---|---|
| Power |
32W |
| Beam Angle |
15/24/36/50° |
| Cut-Out |
Φ145mm |
| Installation |
Recessed |
| Dimension |
Φ160×H130mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
2700lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 800mA |
| Model |
SD042068RL |
|---|---|
| Power |
12W ,15W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
Φ68mm |
| Installation |
Recessed |
| Dimension |
Φ110×H102mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
960lm/1200lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA/350mA |
| Model |
SD8071150R |
|---|---|
| Power |
30W |
| Beam Angle |
20°/30°/45° |
| Cut-Out |
Φ150mm |
| Installation |
Recessed |
| Dimension |
Φ165×H120mm |
| CCT |
3000K ,4000K ,6000K |
| CRI |
80Ra ,90Ra |
| Luminous Flux |
2400lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 700mA |
| Model |
SS811095RH |
|---|---|
| Power |
20W |
| Beam Angle |
20°/40° |
| Cut-Out |
/ |
| Installation |
Surface Mounted |
| Dimension |
Φ95×H152mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
1600lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 500mA |
| Model |
SD043068R |
|---|---|
| Power |
25W |
| Beam Angle |
Wall Wash |
| Cut-Out |
Φ68mm |
| Installation |
Recessed |
| Dimension |
Φ75xH112mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
1500LM |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 600mA |
| Model |
SD052075R |
|---|---|
| Power |
12W ,15W ,18W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
Φ75mm |
| Installation |
Recessed |
| Dimension |
Φ82×H102mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
960lm-1440lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA/350mA/450mA |
