Power:8W
Cut-out:/
Beam angle:9°/10°
CCT: 2700K/3000K/3500K/4000K
Color: Sand white/Sand black
Installation: Surface mounted
Link Narrow Beam Angle 53 Surface Mounted / 8W / Built-in / Brushed
Product Description
- LINK includes Premium/ LFO/ Narrow Beam Angle/ GU10 Series.
- Invisible screw design in appearance, Built-in driver(Triac Dim /Dim to Warm optional).
- Optional narrow beam angle 8°/9°/10°/15°/24°/36°/50° .
- Modular design, tool-free replacementof the housing, ring and optics.
- Easy to exchange different colors housing(Powder Coating/ Brushed/ Electroplating).
- Easy to exchange different installation bases, friendly stock control.
Don’t have a business email? Click here!
Don’t have a business email? Click here!
Specification
Overview
Model |
ST2126NB |
---|---|
Power |
8W |
Beam Angle |
9/10° |
Cut-Out |
/ |
Installation |
Surface mounted |
Dimension |
3-phase / 1-phase |
CCT |
2700K/3000K/3500K/4000K |
CRI |
RA90/RA95 |
Luminous Flux |
600lm |
LED |
Bridgelux |
Color |
Sand white/Sand black |
Surface finish |
Powder Coating |
Material |
Aluminum |
IP Rate |
IP20 |
Input Voltage |
220-240VAC 50/60Hz |
Vf & If |
30-42V 180mA |
Description




Related Accessories

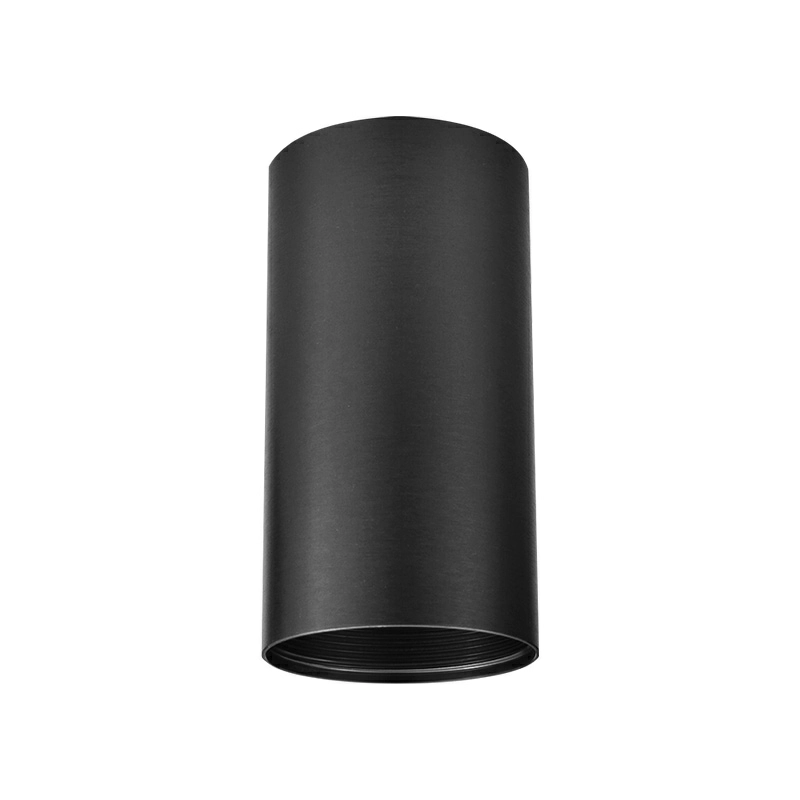

Brushed Black

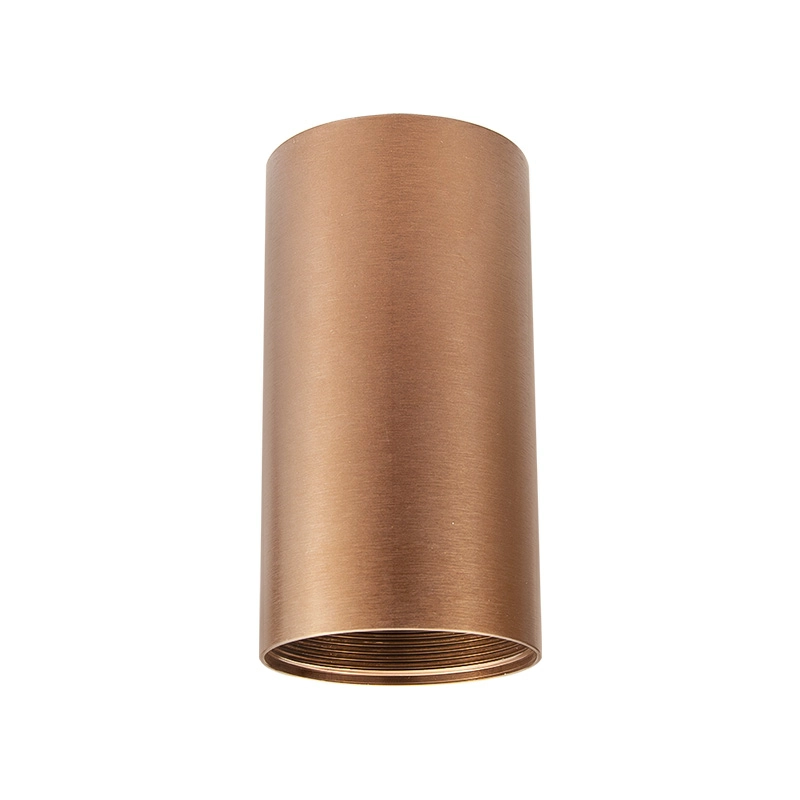

Brushed Bronze

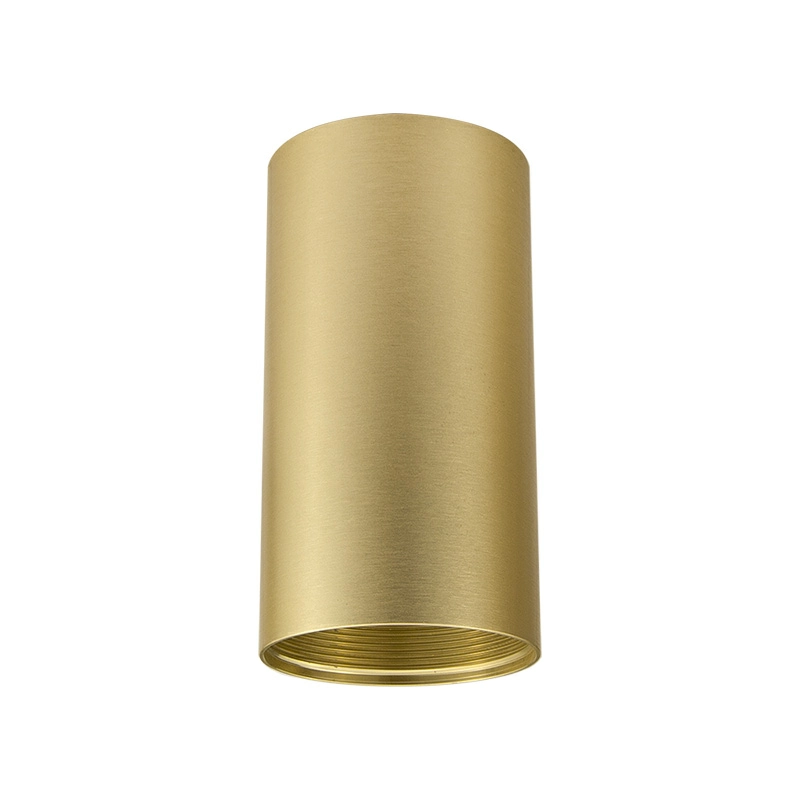

Brushed Gold

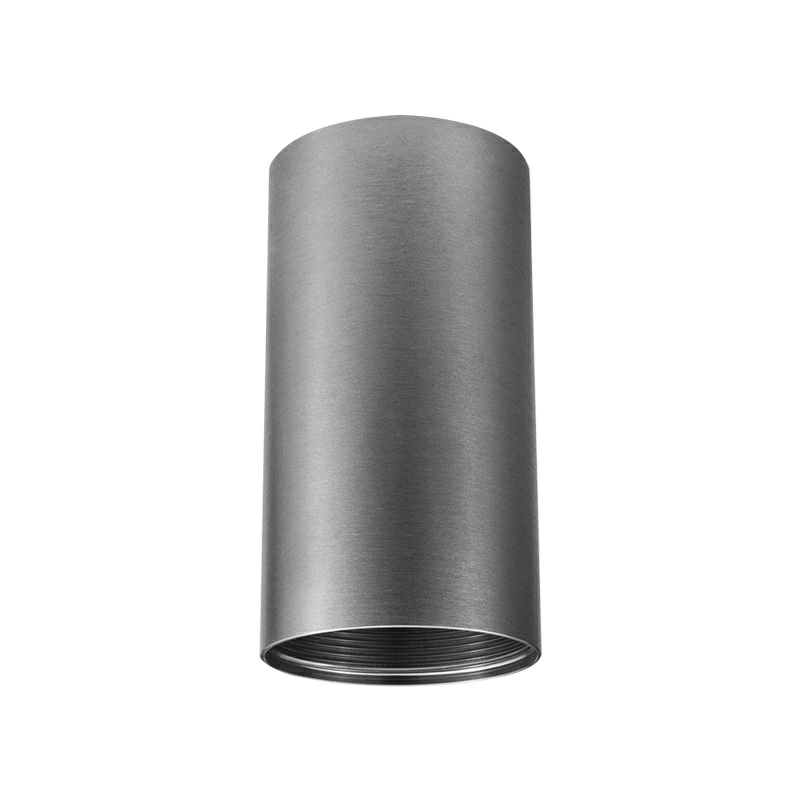

Brushed Silver

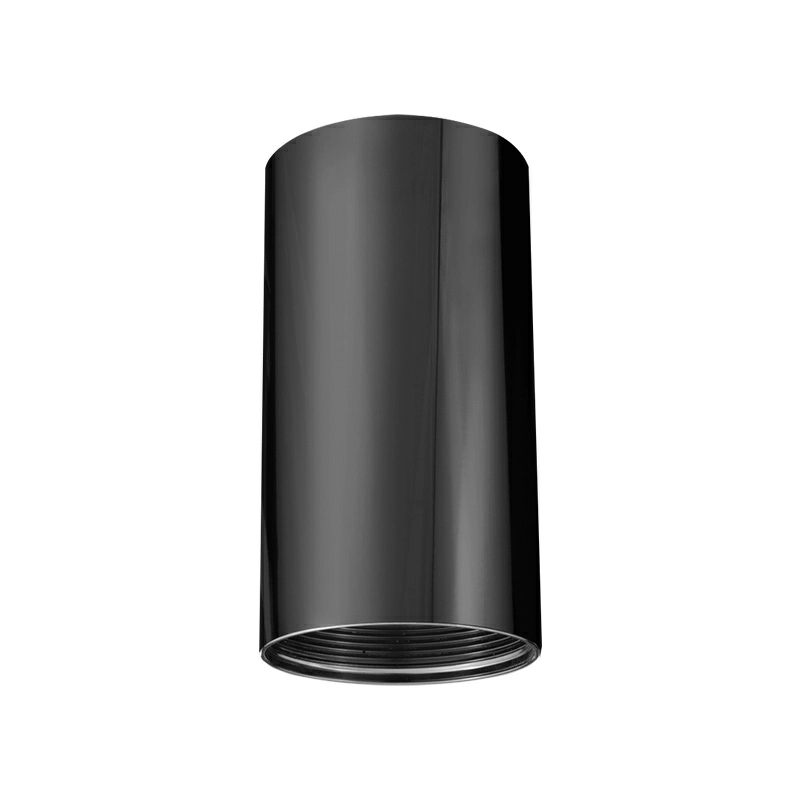

Chrome Black

Sandy Black

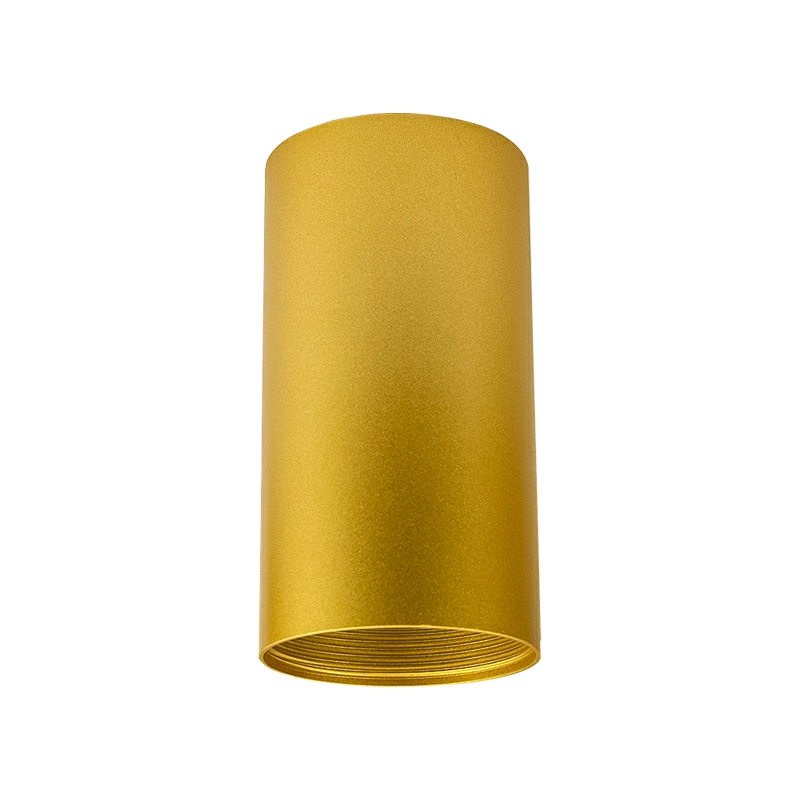

Sandy Gold

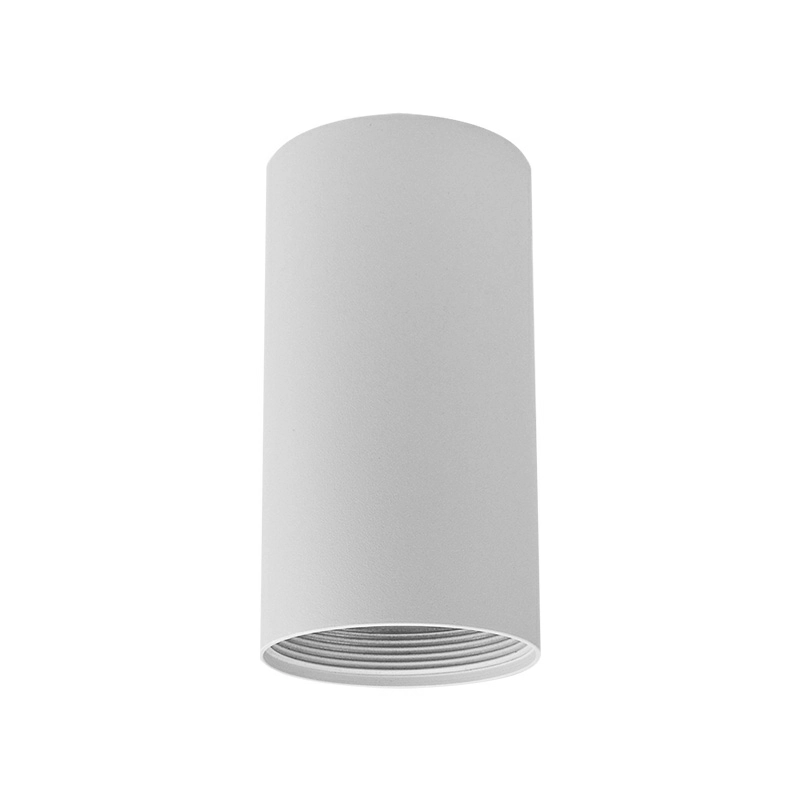

Sandy White

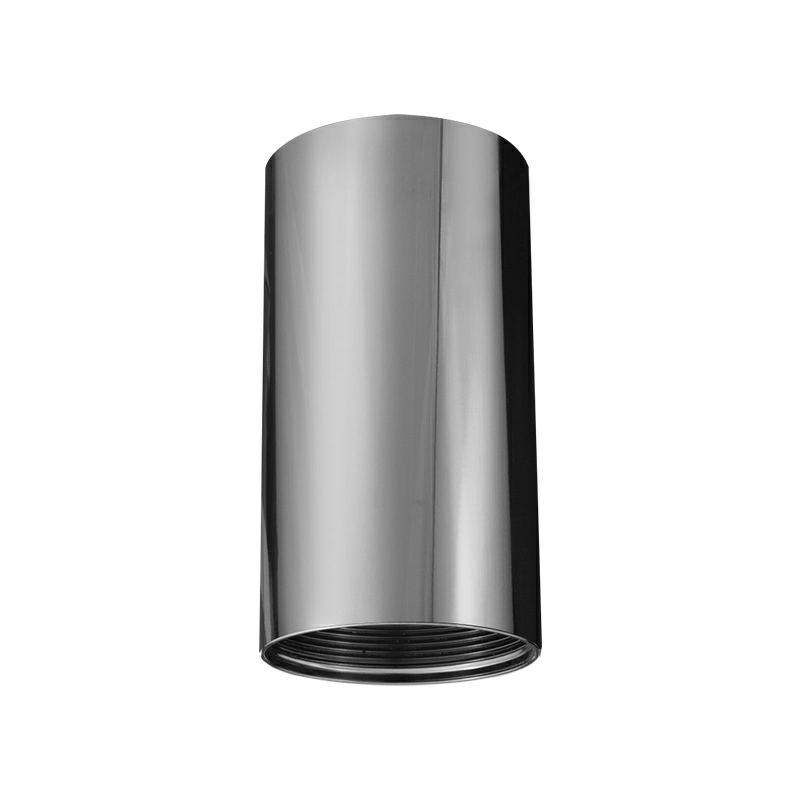

Specular

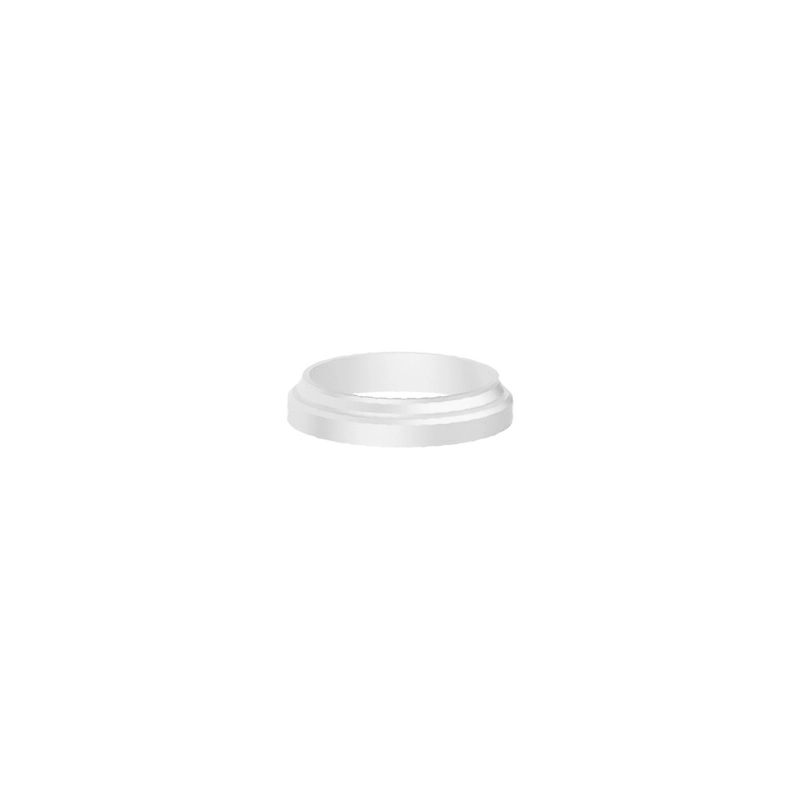

Inner Ring-White

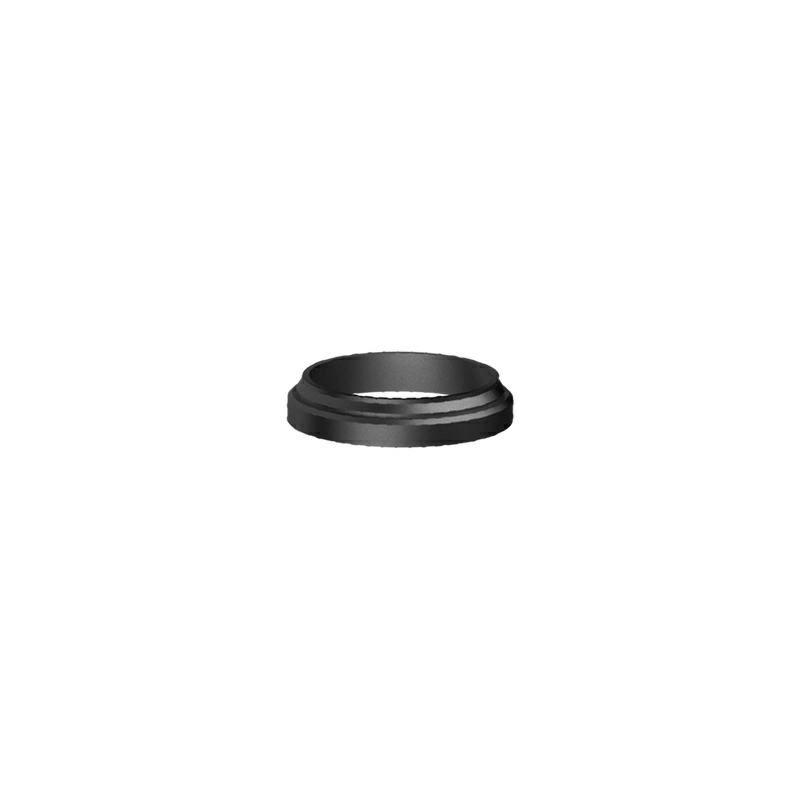

Inner Ring-Black

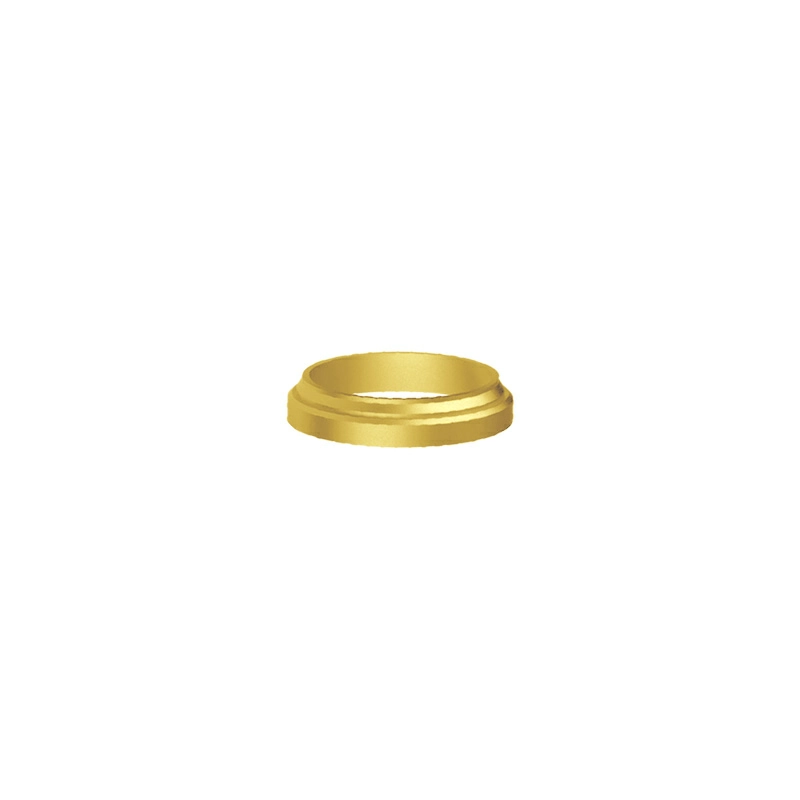

Inner Ring-Gold

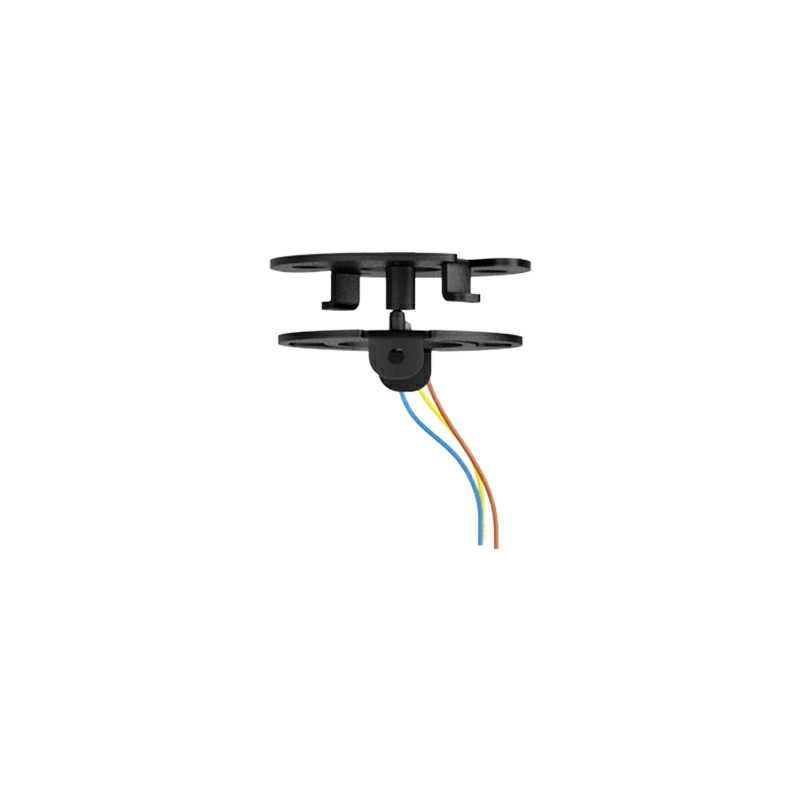

Surface

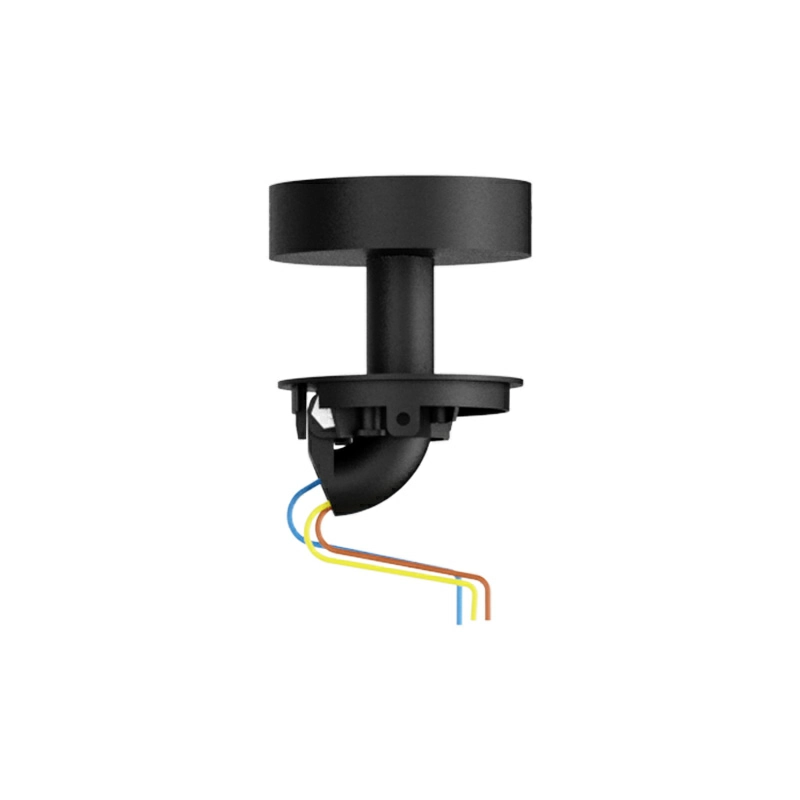

Ceiling

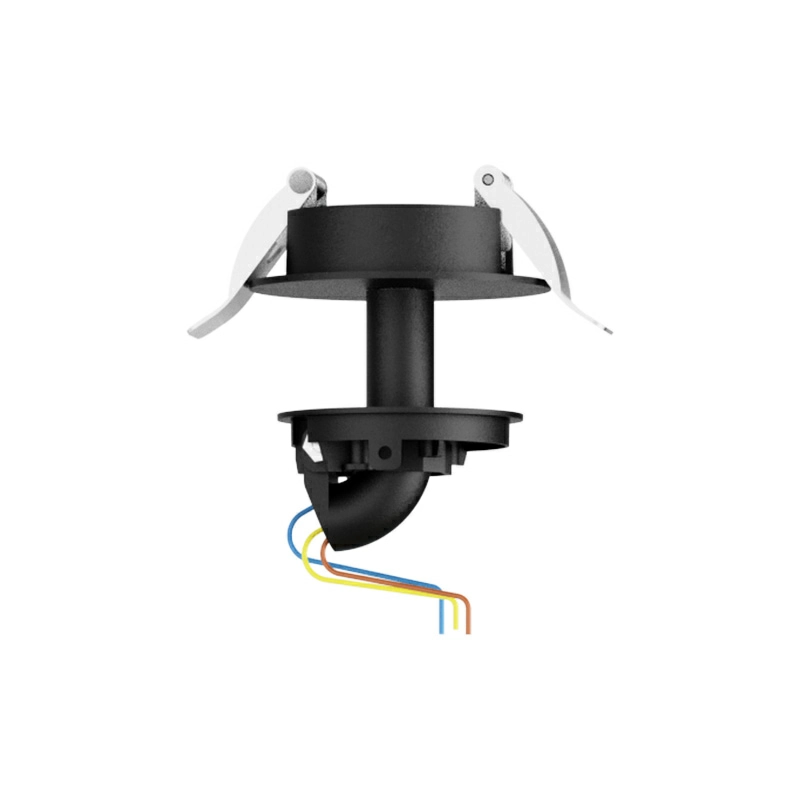

Recessed

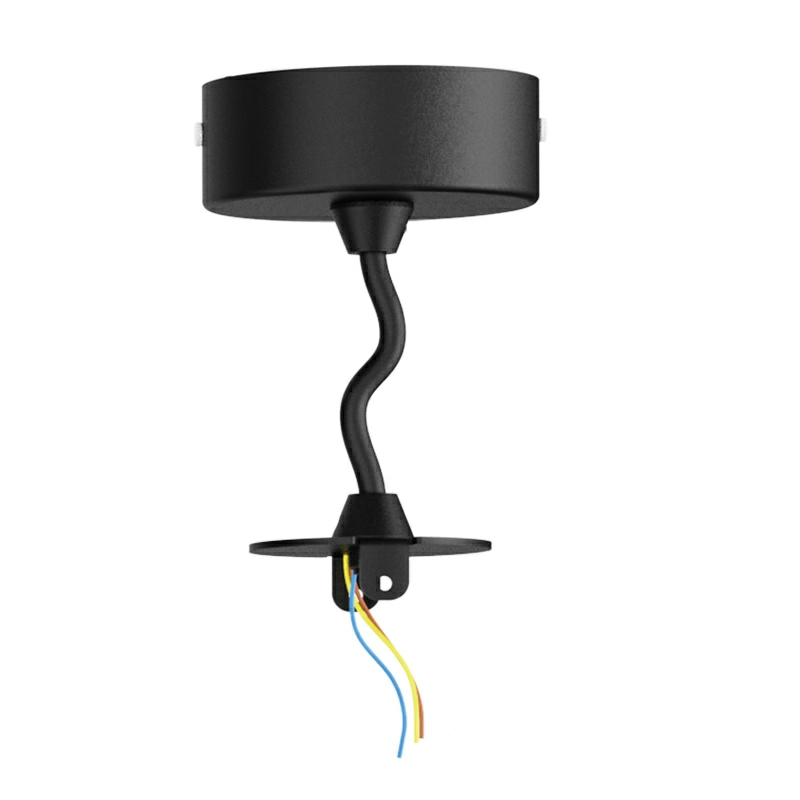

Pendant

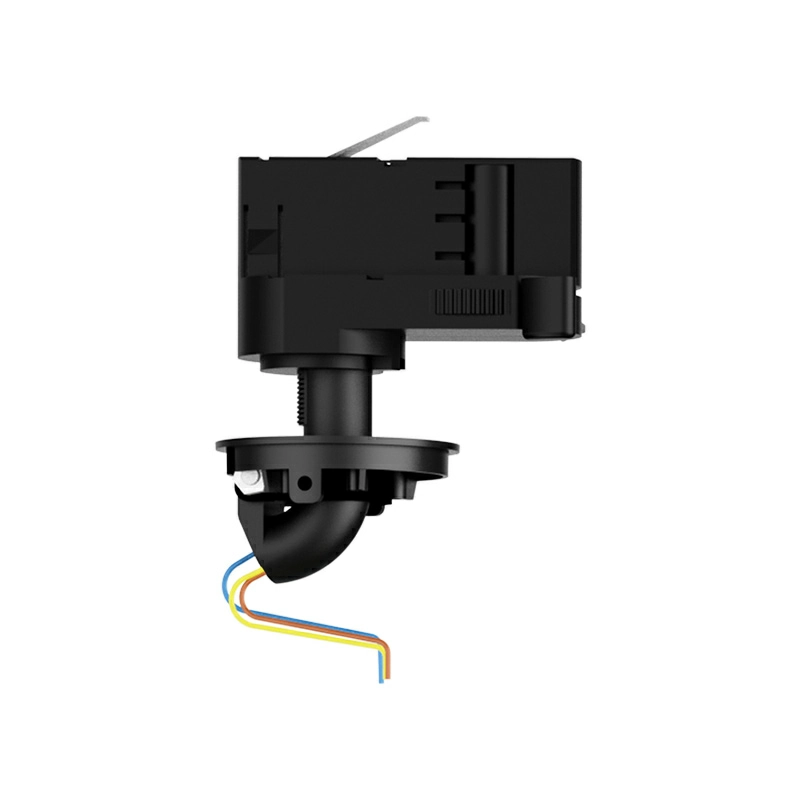

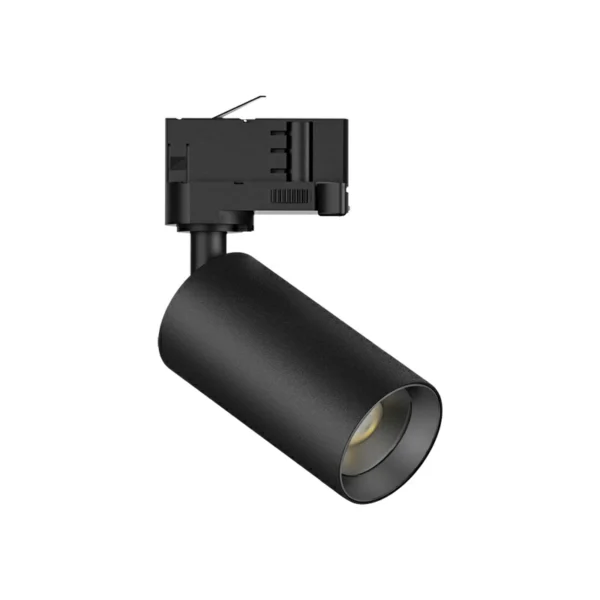

Track

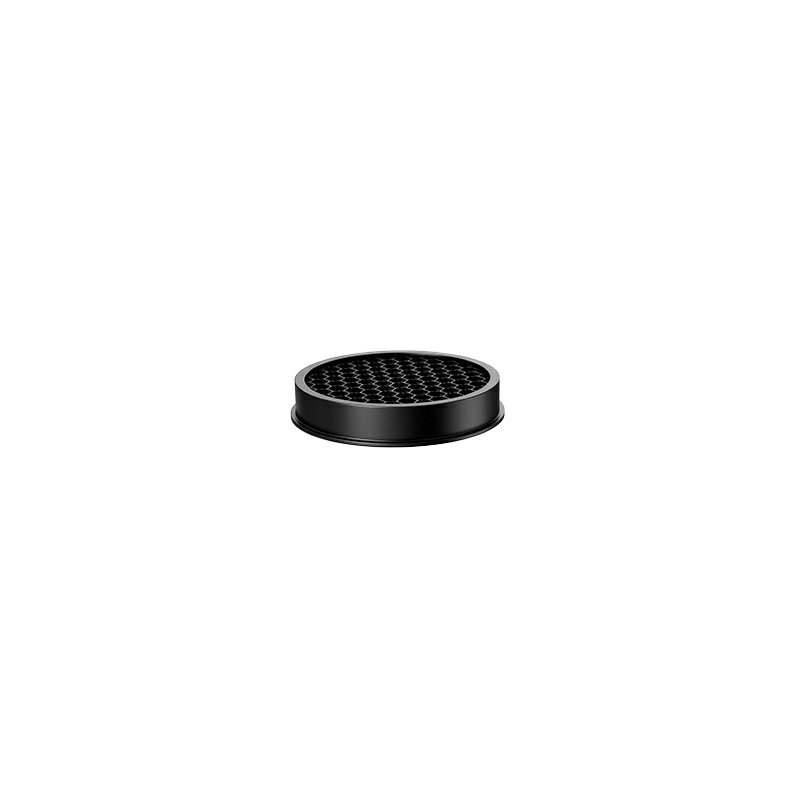

Honeycomb louver

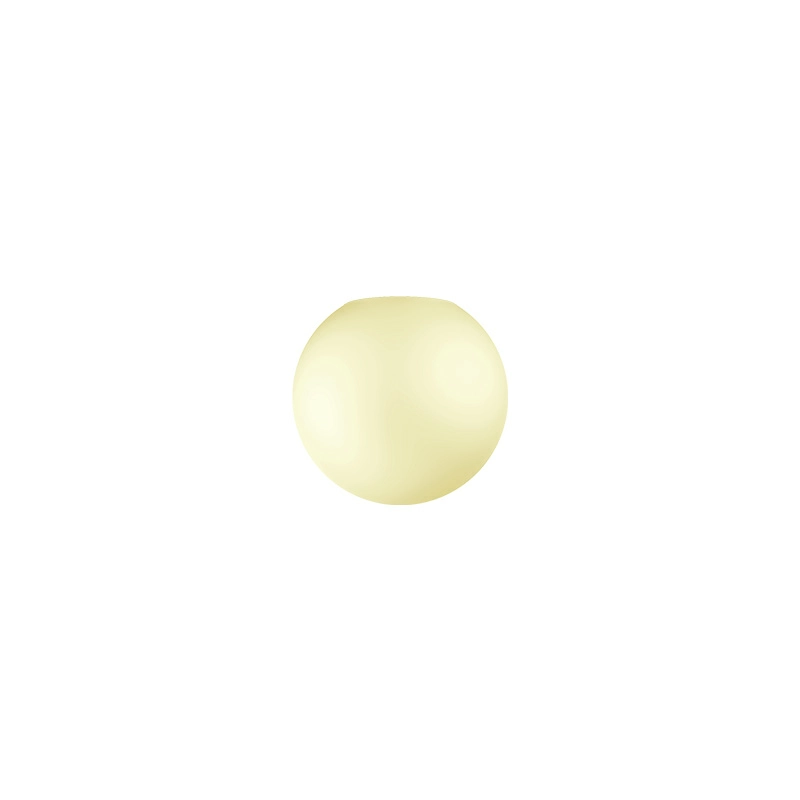

D10

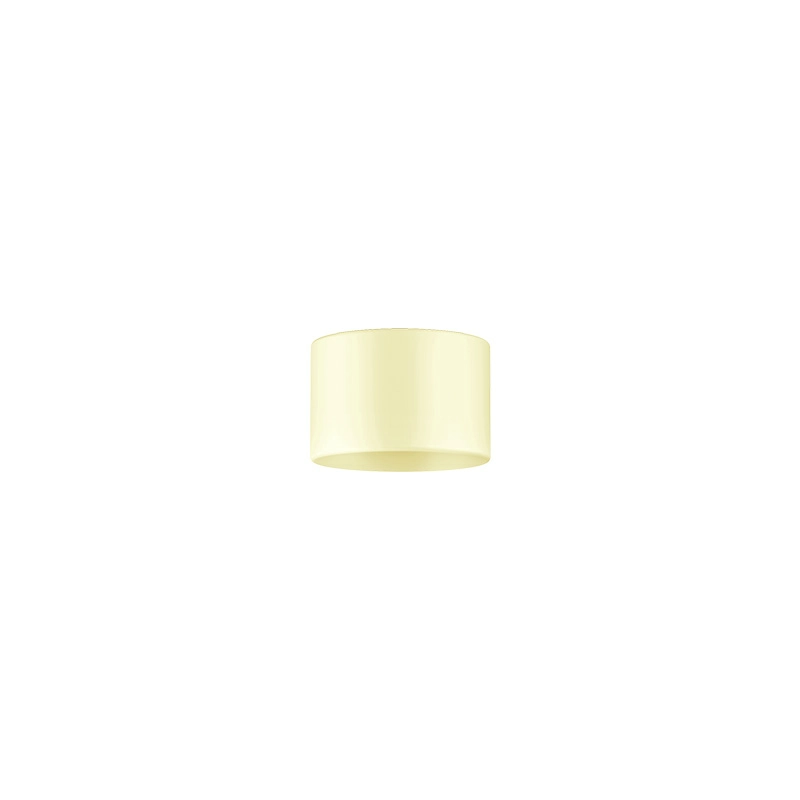

D11

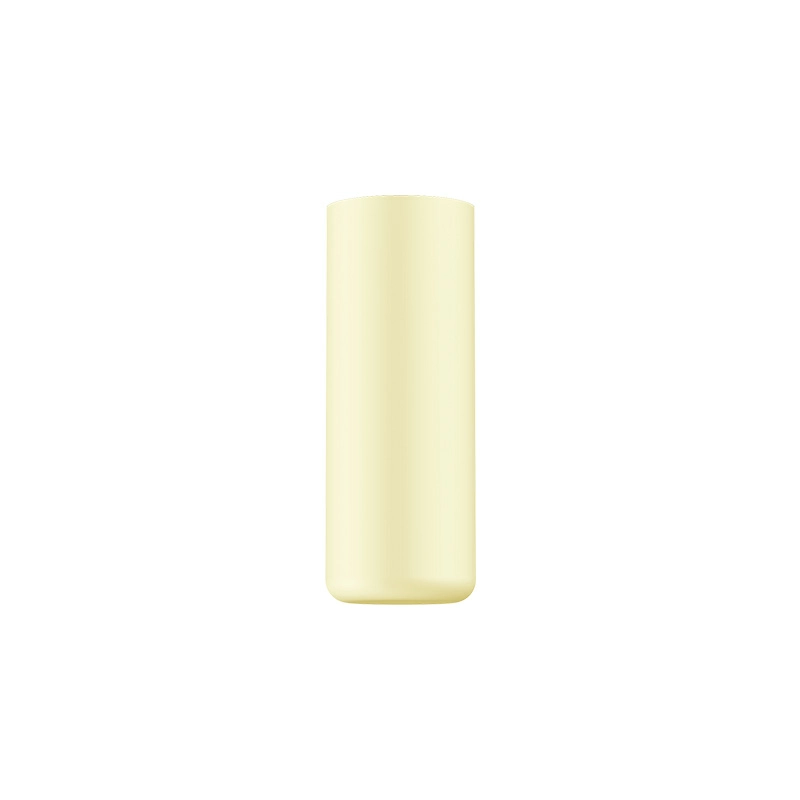

D12
