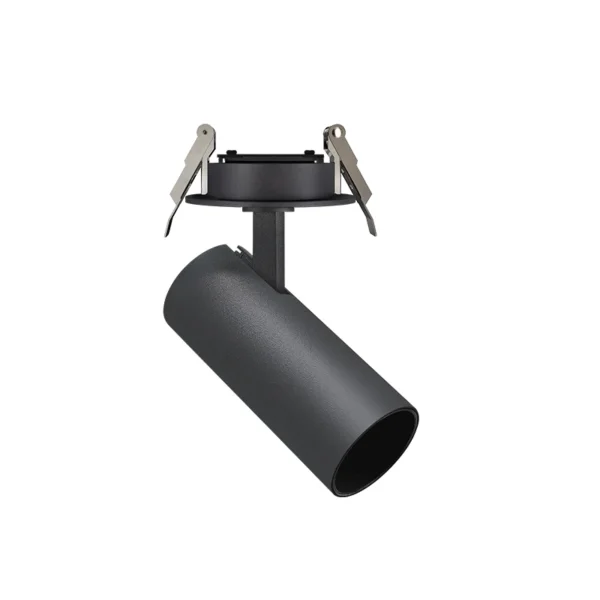

TANGO Recessed 15W

ST3123

Power: 15W
Cut-out:Φ70mm
Beam angle: 15°/24°/36°/50°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

Product Description

  • Cylinder and tiny size with built-in driver, TRIAC dimming and Dim to Warm optional.
  • System efficiency up to 120Lm/W optional @3000K 90RA.
  • Deep anti-glare design, different color anti-glare rings optional.
  • Tool free replacement of anti-glare rings and lens, honeycomb louver optional.
  • Three mounting methods are available: Track, Recessed and Ceiling Mounted.
  • Adjustable 0-355° horizontally, tiltable 0-90° vertically.
Product Inquiry

Don’t have a business email? Click here!

Database Download

Don’t have a business email? Click here!

Specification

Overview

Model

ST3123

Power

15W

Beam Angle

15°/24°/36°/50°

Cut-Out

Φ70mm

Installation

Recessed

Dimension

Φ60xH165mm

CCT

2700K/3000K/3500K/4000K

CRI

RA90/RA95

Luminous Flux

1200LM

LED

Origin Bridgelux COB

Color

White / Black / Custom

Surface finish

Powder Coating

Material

Aluminum

IP Rate

IP20

Input Voltage

AC220-240V

Vf & If

30-42V 350mA

Description

12-15
24-28
36-42
50
12-15
24-28
36-42
50
