Power: 12W
Cut-out: 155x50mm
Beam angle: 24°/30°/45°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

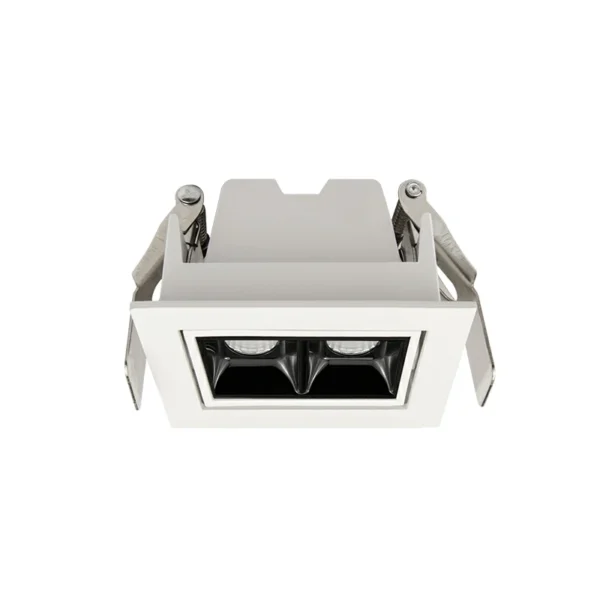

Mini and Linear shape grid light for limited place and special applications.

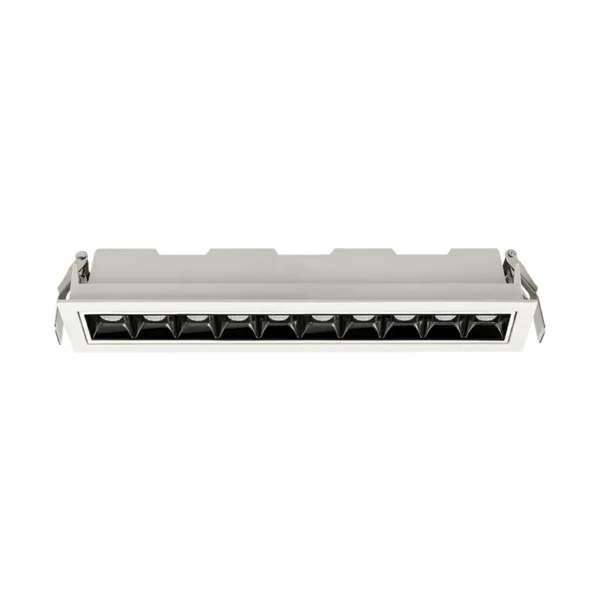

Available in 1 / 2 / 5 / 10 / 15 LEDs model type.
Wall Wash / Adjustable / Trimless / Surface Mounted version available.
CCT 2700K / 3000K / 4000/ 6000K available, CRI 80 / 90 optional.
Don’t have a business email? Click here!
Don’t have a business email? Click here!
Overview
| Model |
SG80505037S-A |
|---|---|
| Power |
12W |
| Beam Angle |
24°/30°/45° |
| Cut-Out |
155x50mm |
| Installation |
Recessed |
| Dimension |
158x59x50mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
900LM |
| LED |
Origin Bridgelux 3535 |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
12-18V 700mA |
| Model |
SD8201055RL |
|---|---|
| Power |
12W |
| Beam Angle |
15°/24°/36°/55° |
| Cut-Out |
Φ55mm |
| Installation |
Recessed |
| Dimension |
Φ80xH90mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
960lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA |
| Model |
SD8071150R |
|---|---|
| Power |
30W |
| Beam Angle |
20°/30°/45° |
| Cut-Out |
Φ150mm |
| Installation |
Recessed |
| Dimension |
Φ165×H120mm |
| CCT |
3000K ,4000K ,6000K |
| CRI |
80Ra ,90Ra |
| Luminous Flux |
2400lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 700mA |
| Model |
SD8071060R |
|---|---|
| Power |
8W |
| Beam Angle |
20°/24°/36° |
| Cut-Out |
Φ60mm |
| Installation |
Recessed |
| Dimension |
Φ70×H55mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
80Ra ,90Ra |
| Luminous Flux |
640lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 180mA |
| Model |
ST6141W |
|---|---|
| Power |
20W ,30W |
| Beam Angle |
90° |
| Cut-Out |
/ |
| Installation |
3-phase / 1-phase |
| Dimension |
33×33xL800mm |
| CCT |
2700K/3000K/4000K/5000K/6500K |
| CRI |
RA80 ,RA90 |
| Luminous Flux |
20W @930 1300lm 65lm/W(S) |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 500/750mA |
| Model |
SD011030HR-C |
|---|---|
| Power |
5W |
| Beam Angle |
20°/30°/40° |
| Cut-Out |
Φ30mm |
| Installation |
Recessed |
| Dimension |
Φ34xH64mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
250LM |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Spray Painting |
| Material |
Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
15-21V 250mA |
