Back to products

ST3023

ST3023-

Click to enlarge

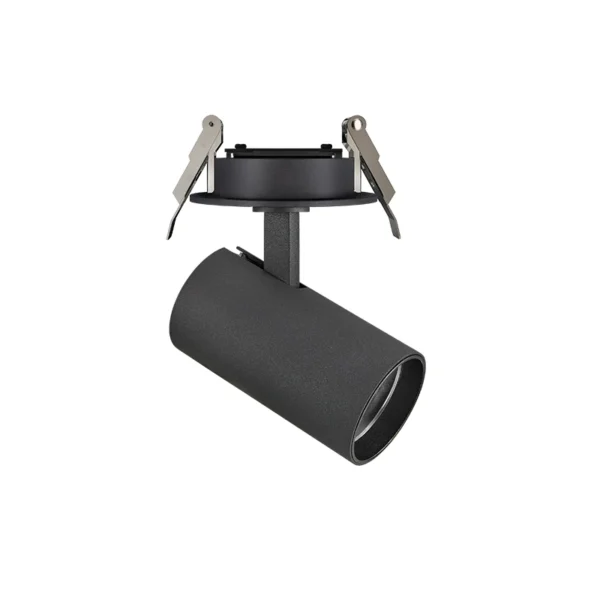

TANGO Recessed 8W/12W

ST3023

Power: 8W/12W
Cut-out:Φ70mm
Beam angle: 15°/24°/36°/55°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

Product Description

Cylinder and tiny size with built-in driver, TRIAC dimming and Dim to Warm optional.
System efficiency up to 120Lm/W optional @3000K 90RA.
Deep anti-glare design, different color anti-glare rings optional.
Tool free replacement of anti-glare rings and lens, honeycomb louver optional.
Three mounting methods are available: Track, Recessed and Ceiling Mounted.
Adjustable 0-355° horizontally, tiltable 0-90° vertically.

Specification

Overview

Model	ST3023
Power	12W , 8W
Beam Angle	15°/24°/36°/55°
Cut-Out	Φ70mm
Installation	Recessed
Dimension	Φ54xH130mm
CCT	2700K/3000K/3500K/4000K
CRI	RA90/RA95
Luminous Flux	640LM/960LM
LED	Origin Bridgelux COB
Color	White / Black / Custom
Surface finish	Powder Coating
Material	Aluminum
IP Rate	IP20
Input Voltage	AC220-240V
Vf & If	30-42V 180mA/300mA

Description

12-15

24-28

36-42

55

Related Products

EVO 68 Down Light Fixed / Trim

LETGO EVO Series

Model	SD041068R
Power	12W , 15W
Beam Angle	15° , 24° , 36° , 55°
Cut-Out	Φ68mm
Installation	Recessed
Dimension	Φ75×H98mm
CCT	2700K , 3000K , 3500K , 4000K
CRI	90Ra , 95Ra
Luminous Flux	960lm/1200lm
LED	Origin Bridgelux COB
Color	White / Black / Custom
Surface finish	Powder Coating
Material	Die Csting Aluminum
IP Rate	IP20/IP54
Input Voltage	AC220-240V
Vf & If	30-42V 300mA/350mA

MR16 68 Down Light Adjustable / Trimless

LETGO MR16 Series

Model	SD042068RL-MR16
Power	/
Beam Angle	/
Cut-Out	Φ68mm
Installation	Recessed
Dimension	Φ110×H52mm
CCT	/
CRI	/
Luminous Flux	/
LED	/
Color	White / Black / Custom
Surface finish	Powder Coating
Material	Die Casting Aluminum
IP Rate	IP20/IP54
Input Voltage	/
Vf & If	/

PREMIUN 75 Down Light Fixed / Trim

LETGO Premiun Series

Model	SD051075R
Power	12W , 8W
Beam Angle	15° , 24° , 36° , 55°
Cut-Out	Φ75mm
Installation	Recessed
Dimension	Φ82×H76mm
CCT	2700K , 3000K , 3500K , 4000K
CRI	90Ra , 95Ra
Luminous Flux	640lm-960lm
LED	Origin Bridgelux COB
Color	White / Black / Custom
Surface finish	Powder Coating
Material	Die Casting Aluminum
IP Rate	IP20/IP54
Input Voltage	AC220-240V
Vf & If	30-42V 200mA/300mA

VITO 60 Down Light Fixed / Trim

Model	SD8201060R
Power	15W
Beam Angle	15°/24°/36°/55°
Cut-Out	Φ60mm
Installation	Recessed
Dimension	Φ67xH93mm
CCT	2700K , 3000K , 3500K , 4000K
CRI	90Ra , 95Ra
Luminous Flux	1200lm
LED	Origin Bridgelux COB
Color	White / Black / Custom
Surface finish	Powder Coating
Material	Die Casting Aluminum
IP Rate	IP20
Input Voltage	AC220-240V
Vf & If	30-42V 350mA

TORCH 40 Evo Down Light Fixed / Trim

Model	H024-1040R
Power	8W
Beam Angle	24°/36°
Cut-Out	Φ40mm
Installation	Recessed
Dimension	Φ44xH90mm
CCT	2700K , 3000K , 3500K , 4000K
CRI	90Ra , 95Ra
Luminous Flux	640lm
LED	Origin Bridgelux COB
Color	White / Black / Custom
Surface finish	Powder Coating
Material	Die Casting Aluminum
IP Rate	IP20
Input Voltage	AC220-240V
Vf & If	30-42V 200mA
