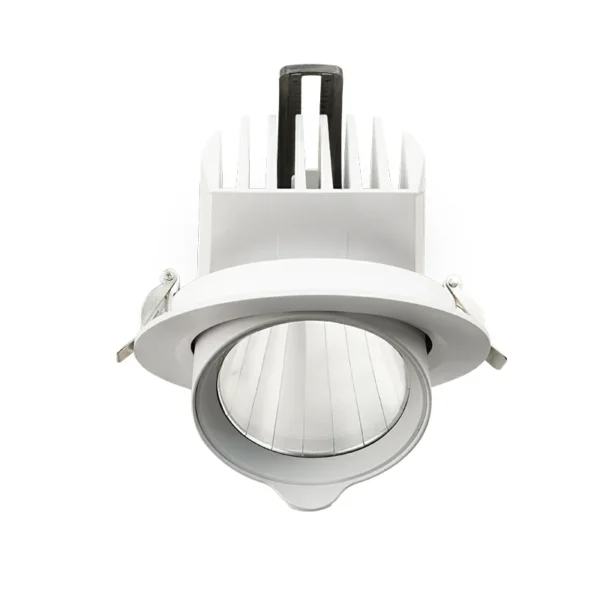

35W LED downlight Trunk 115 Alanod reflector adjustable 35W recessed LED spotlight premium beam control
Trunk 115 Alanod Reflector / In & Out
Back to products
35W LED downlight Trunk 115 Alanod reflector adjustable 35W recessed LED spotlight premium beam control
Trunk 115 Aluminum Reflector / In & Out
25W LED downlight Trunk 100 aluminum reflector adjustable 25W recessed LED spotlight beam angle options
Trunk 100 Aluminum Reflector / In & Out - Image 2
Click to enlarge
25W LED downlight Trunk 100 aluminum reflector adjustable 25W recessed LED spotlight beam angle options
Trunk 100 Aluminum Reflector / In & Out - Image 2

Trunk 100 Aluminum Reflector / In & Out

SC6082100R-AR

Power:25W
Cut-out: Φ100mm
Beam angle: 24°/36°/50°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

Product Description

  • Push In & Pull Out spotlight with 355 degree adjustable meets the demands of illuminating to any directions.
  • System efficiency up to 130Lm/W @3000K 90RA.
  • Anti-glare lens / Aluminum Reflector / Alanod Reflector version available.
  • TRIAC / 0-10V / DALI dimming optional. Full range beam angles available for projects.
Get Free Quote

Don’t have a business email? Click here!

Database Download

Don’t have a business email? Click here!

Specification

Overview

ModelSC6082100R-R
Power25W
Beam Angle24°/36°/50°
Cut-OutΦ100mm
InstallationRecessed
DimensionΦ110×H90mm
CCT2700K/3000K/3500K/4000K
CRIRA90/RA95
Luminous Flux2400lm / 2700lm(HE)
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom
Surface finishPowder Coating
MaterialDie-casting aluminum
IP RateIP20
Input VoltageAC220-240V
Vf & If30-42V 600mA

Description

24
24
36
50°
previous arrow
next arrow

Related Products

SARA 30 3W COB Fixed / Deep Anti-Galre

ModelSD011030HR-C
Power5W
Beam Angle20°/30°/40°
Cut-OutΦ30mm
InstallationRecessed
DimensionΦ34xH64mm
CCT2700K, 3000K, 3500K, 4000K
CRI90Ra, 95Ra
Luminous Flux250LM
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom
Surface finishSpray Painting
MaterialAluminum
IP RateIP20/IP54
Input VoltageAC220-240V
Vf & If15-21V 250mA

EVO 75 Down Light Fixed / Trim

ModelSD041075R
Power12W, 15W
Beam Angle15°, 24°, 36°, 55°
Cut-OutΦ75mm
InstallationRecessed
DimensionΦ82×H98mm
CCT2700K, 3000K, 3500K, 4000K
CRI90Ra, 95Ra
Luminous Flux960lm/1200lm
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom
Surface finishPowder Coating
MaterialDie Csting Aluminum
IP RateIP20/IP54
Input VoltageAC220-240V
Vf & If30-42V 300mA/350mA

EVO 75 Down Light Adjustable / Trim

ModelSD042075R
Power12W, 15W
Beam Angle15°, 24°, 36°, 55°
Cut-Out75x75mm
InstallationRecessed
Dimension82×82×H115mm
CCT2700K, 3000K, 3500K, 4000K
CRI90Ra, 95Ra
Luminous Flux960lm/1200lm
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom
Surface finishPowder Coating
MaterialDie Csting Aluminum
IP RateIP20/IP54
Input VoltageAC220-240V
Vf & If30-42V 300mA/350mA

Comet Twin / Square / Reflector

ModelSG80702145S
Power23Wx2, 32Wx2
Beam Angle15/24/36/50°
Cut-Out300x145mm
InstallationRecessed
Dimension315x160x100mm
CCT2700K/3000K/3500K/4000K
CRIRA90/RA95
Luminous Flux2x 2550lm / 3000lm(HE) @23W 2x 3300lm / 3900lm(HE) @32W
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom
Surface finishPowder Coating
MaterialAluminum
IP RateIP20
Input VoltageAC220-240V
Vf & If30-42V 600mAx2/800mAx2

TANGO Recessed 8W/12W

ModelST3023
Power12W, 8W
Beam Angle15°/24°/36°/55°
Cut-OutΦ70mm
InstallationRecessed
DimensionΦ54xH130mm
CCT2700K/3000K/3500K/4000K
CRIRA90/RA95
Luminous Flux640LM/960LM
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom
Surface finishPowder Coating
MaterialAluminum
IP RateIP20
Input VoltageAC220-240V
Vf & If30-42V 180mA/300mA
