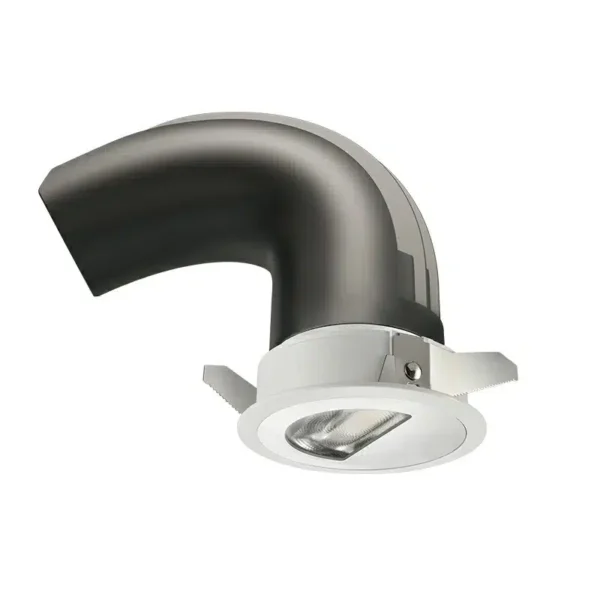

LETGO 68 Wall Wash Fixed / Trimless
LETGO 68 Wall Wash Fixed / Trimless - Image 2

LETGO 68 Wall Wash Fixed / Trimless

SD043068RL

Power: 15W
Cut-out: Φ68mm
Beam angle: Wall Wash
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

Product Description

  • Convectional passive cooling engine ensures the long life of luminaires.
  • The ideal spacing to the wall (a) is a third of the room height(h) .
    Arrangement: h = (3-4) x a
  • For wallwashing with good and uniform horizontal illuminance, the spacing (d) of double-focus wallwashers may be up to 1.0 times the offset from the wall (a).
    Arrangement: d ≤ a x (0.5-1.0)
Product Inquiry

Don’t have a business email? Click here!

Database Download

Don’t have a business email? Click here!

Specification

Overview

Model

SD043068RL
Power

15W
Beam Angle

Wall Wash
Cut-Out

Φ68mm
Installation

Recessed
Dimension

Φ110xH88mm
CCT

2700K

,

3000K

,

3500K

,

4000K
CRI

90Ra

,

95Ra
Luminous Flux

800LM
LED

Origin Bridgelux COB
Color

White / Black / Custom
Surface finish

Powder Coating
Material

Die Casting Aluminum
IP Rate

IP20
Input Voltage

AC220-240V
Vf & If

30-42V 350mA

Description

WALL WASHER
WALL WASHER
WALL WASHER
WALL WASHER
