Power: 12W
Cut-out:139x37mm
Beam angle: 15°/30°/45°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

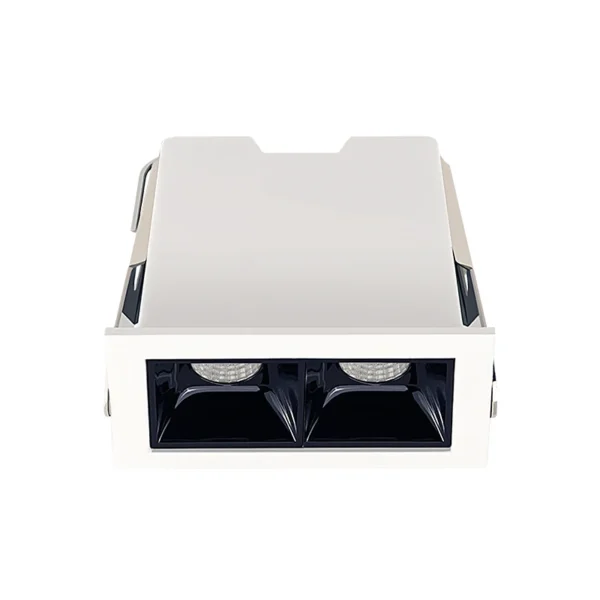

NEBULA 5 Linear Grid Light
SG80505037S
Product Description
- Mini and Linear shape grid light for limited place and special applications.

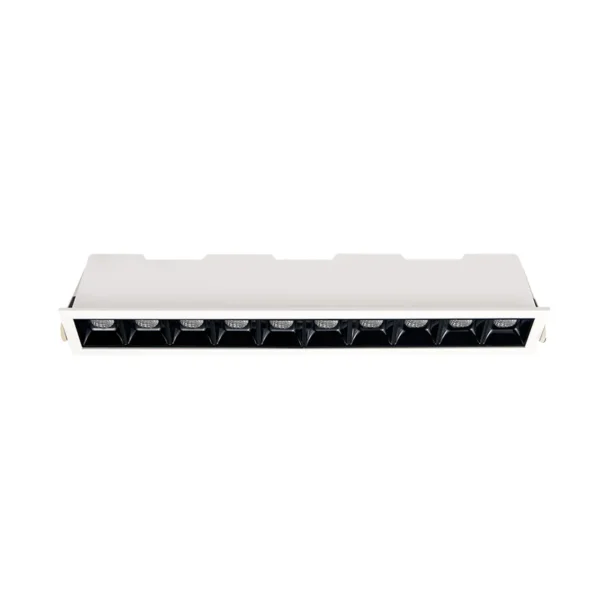

- Available in 1 / 2 / 5 / 10 / 15 LEDs model type. Wall Wash version available.
- CCT 2700K / 3000K / 4000/ 6000K available, CRI 80 / 90 optional.
Don’t have a business email? Click here!
Don’t have a business email? Click here!
Specification
Overview
Model |
SG80505037S |
---|---|
Power |
12W |
Beam Angle |
24°/30°/45° |
Cut-Out |
140x37mm |
Installation |
Recessed |
Dimension |
147x45x50mm |
CCT |
2700K/3000K/3500K/4000K |
CRI |
RA90/RA95 |
Luminous Flux |
900lm |
LED |
Origin Bridgelux 3535 |
Color |
White / Black / Custom |
Surface finish |
Powder Coating |
Material |
Die Casting Aluminum |
IP Rate |
IP20 |
Input Voltage |
AC220-240V |
Vf & If |
12-18V 700mA |
Description






Related Accessories

Black Reflector

White Reflector

Gold Reflector
