Power: 22W
Cut-out: 285x50mm
Beam angle: 24°/30°/45°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

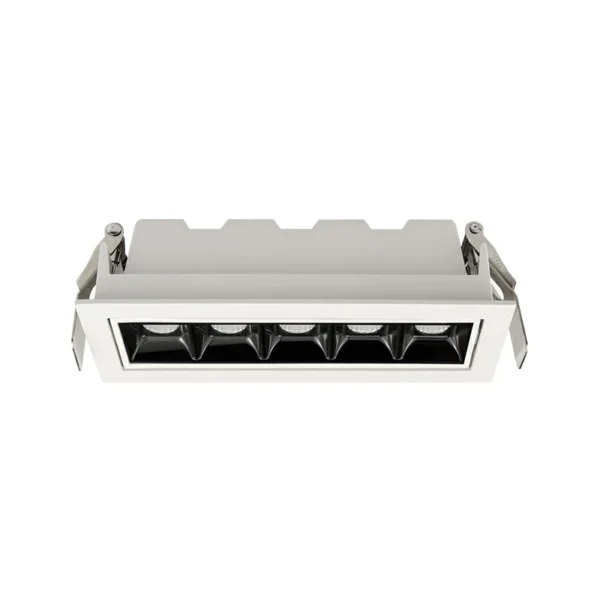

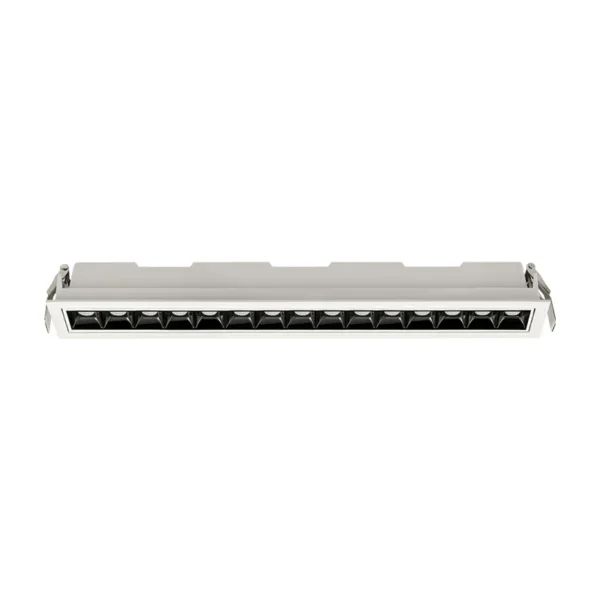

Mini and Linear shape grid light for limited place and special applications.
Available in 1 / 2 / 5 / 10 / 15 LEDs model type.
Wall Wash / Adjustable / Trimless / Surface Mounted version available.
CCT 2700K / 3000K / 4000/ 6000K available, CRI 80 / 90 optional.
Eikö sinulla ole yrityssähköpostia? Klikkaa tästä!
Eikö sinulla ole yrityssähköpostia? Klikkaa tästä!
Overview | Model |
SG80510037S-A |
|---|---|
| Power |
22W |
| Beam Angle |
24°/30°/45° |
| Cut-Out |
285x50mm |
| Asennus |
Recessed |
| Dimension |
291x59x50mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
1800LM |
| LED |
Origin Bridgelux 3535 |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
27-33V 700mA |
| Model |
SD052068R |
|---|---|
| Power |
12W ,15W ,18W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
Φ68mm |
| Asennus |
Recessed |
| Dimension |
Φ75×H102mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
960lm-1440lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA/350mA/450mA |
| Model |
SD051068RL |
|---|---|
| Power |
12W ,8W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
Φ68mm |
| Asennus |
Recessed |
| Dimension |
Φ110×H76mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
640lm-960lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 200mA/300mA |
| Model |
SG80515037S-L |
|---|---|
| Power |
35W |
| Beam Angle |
24°/30°/45° |
| Cut-Out |
408x45mm |
| Asennus |
Recessed |
| Dimension |
408x91x60mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
3200lLM |
| LED |
Origin Bridgelux 3535 |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
42-48V 700mA |
| Model |
SD042075SL |
|---|---|
| Power |
8W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
75x75mm |
| Asennus |
Recessed |
| Dimension |
110×110×H93mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
640lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 200mA |
