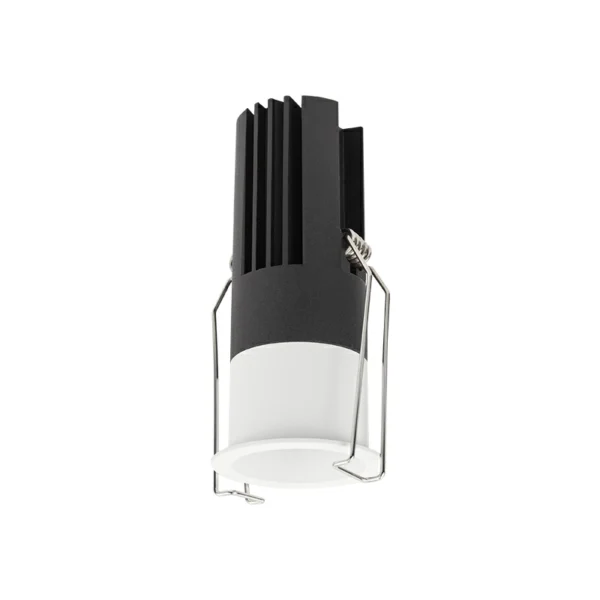

40 8W/10W Fixed / Trim Mini Downlight

SD7301040RS-L

Power: 8W/10W
Cut-out: Φ40mm
Beam angle: 24°/30°/40°/55°
CCT: 2700K/3000K/3500K/4000K
Color: Sand white/Sand black
Installation: Recessed

Product Description

  • S/ M/ L modules are available, 7W-15W
  • The minimum Cut-out is 25mm, different frames are optional
  • MINI size design, compatible with COB version
  • Optional narrow beam angle 8°/15°/24°/36°/50° /65°.
  • Spring type design and unique trimless design for easy installation
  • Deep anti-glare design, different color frame optional
  • IP54 waterproof rating, fixed and adjustable optional
  • Modular design, free tool replacement accessories, friendly stock control.
Get Free Quote

Don’t have a business email? Click here!

Database Download

Don’t have a business email? Click here!

Specification

Overview

ModelSD7301040RS-L
Power10W, 8W
Beam Angle24°/30°/40°/55°
Cut-OutΦ40mm
InstallationRecessed
DimensionΦ46xH90mm
CCT2700K/3000K/3500K/4000K
CRI80Ra, 90Ra
Luminous Flux600lm/800lm
LEDBridgelux
ColorSand white/Sand black
Surface finishPowder Coating
MaterialAluminum
IP RateIP20/IP54
Input Voltage220-240VAC 50/60Hz
Vf & If30-42V 180mA/250mA
