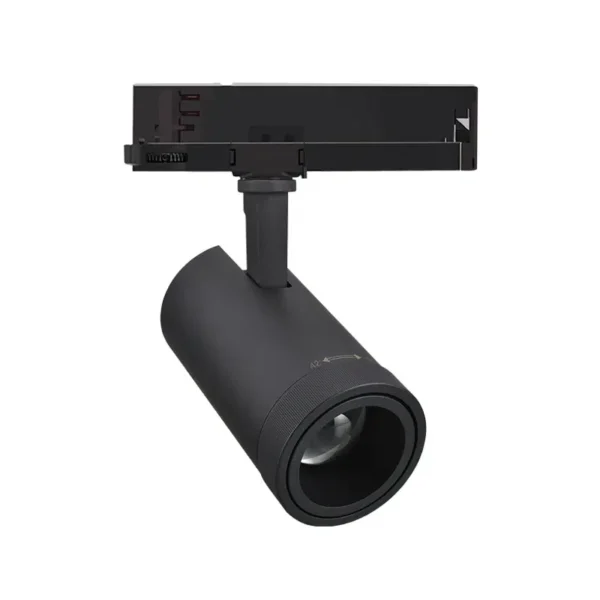

ST3261
Power: 20W
CCT: 2700K/3000K/3500K/4000K
Beam angle: 9°-42°
Color: White / Black / Custom
Installation: 3-phase / 1-phase
Cut-out:/
Don’t have a business email? Click here!
Don’t have a business email? Click here!
Overview
| Model |
ST3261 |
|---|---|
| Power |
20W |
| Beam Angle |
9°-42° |
| Cut-Out |
/ |
| Installation |
3-phase / 1-phase |
| Dimension |
Φ85×L161mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
80Ra/90Ra |
| Luminous Flux |
1200lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 500mA |
| Model |
ST3361W |
|---|---|
| Power |
20W |
| Beam Angle |
9°-42° |
| Cut-Out |
/ |
| Installation |
3-phase / 1-phase |
| Dimension |
Φ68×L150mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
80Ra/90Ra |
| Luminous Flux |
1200lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 500mA |
| Model |
SD8271090S |
|---|---|
| Power |
15W |
| Beam Angle |
15°/24°/36°/55° |
| Cut-Out |
90x90mm |
| Installation |
Recessed |
| Dimension |
100×100×H63mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
1200lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP65 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 350mA |
| Model |
SD8111115S |
|---|---|
| Power |
32W |
| Beam Angle |
27°/31°/40°/50° |
| Cut-Out |
115x115mm |
| Installation |
Recessed |
| Dimension |
129×129×H80mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
2500lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 800mA |
| Model |
SC6082115R-L |
|---|---|
| Power |
35W |
| Beam Angle |
20°/24°/30° |
| Cut-Out |
Φ115-125mm |
| Installation |
Recessed |
| Dimension |
Φ138×H105mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
3200lm / 3800lm(HE) |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 800mA |
| Model |
SD8271125R |
|---|---|
| Power |
25W |
| Beam Angle |
15°/24°/36°/55° |
| Cut-Out |
Φ125mm |
| Installation |
Recessed |
| Dimension |
Φ136×H83mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
2000lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP65 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 600mA |
