Trunk 115 Lens / In & Out
Trunk 115 Lens / In & Out - Image 2

Trunk 115 Lens / In & Out

SC6082100R-L

Power:35W
Cut-out: Φ115-125mm
Beam angle: 20°/24°/30°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed

Product Description

  • Push In & Pull Out spotlight with 355 degree adjustable meets the demands of illuminating to any directions.
  • System efficiency up to 130Lm/W @3000K 90RA.
  • Anti-glare lens / Aluminum Reflector / Alanod Reflector version available.
  • TRIAC / 0-10V / DALI dimming optional. Full range beam angles available for projects.
Get Free Quote

Don’t have a business email? Click here!

Database Download

Don’t have a business email? Click here!

Specification

Overview

ModelSC6082115R-L
Power35W
Beam Angle20°/24°/30°
Cut-OutΦ115-125mm
InstallationRecessed
DimensionΦ138×H105mm
CCT2700K/3000K/3500K/4000K
CRIRA90/RA95
Luminous Flux3200lm / 3800lm(HE)
LEDOrigin Bridgelux COB
ColorWhite / Black / Custom

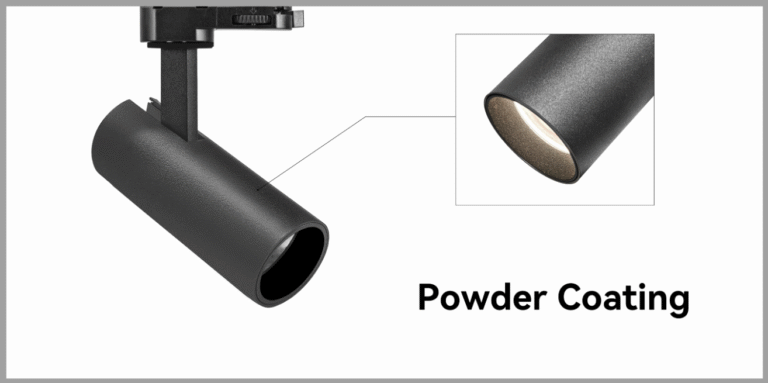

Surface finishPowder Coating
MaterialDie-casting aluminum
IP RateIP20
Input VoltageAC220-240V
Vf & If30-42V 800mA
