Power:20Wx3
Cut-out: 100×285mm
Beam angle:20/24/36/45°
CCT: 2700K/3000K/3500K/4000K
Color: White / Black / Custom
Installation: Recessed
Don’t have a business email? Click here!
Don’t have a business email? Click here!
Overview

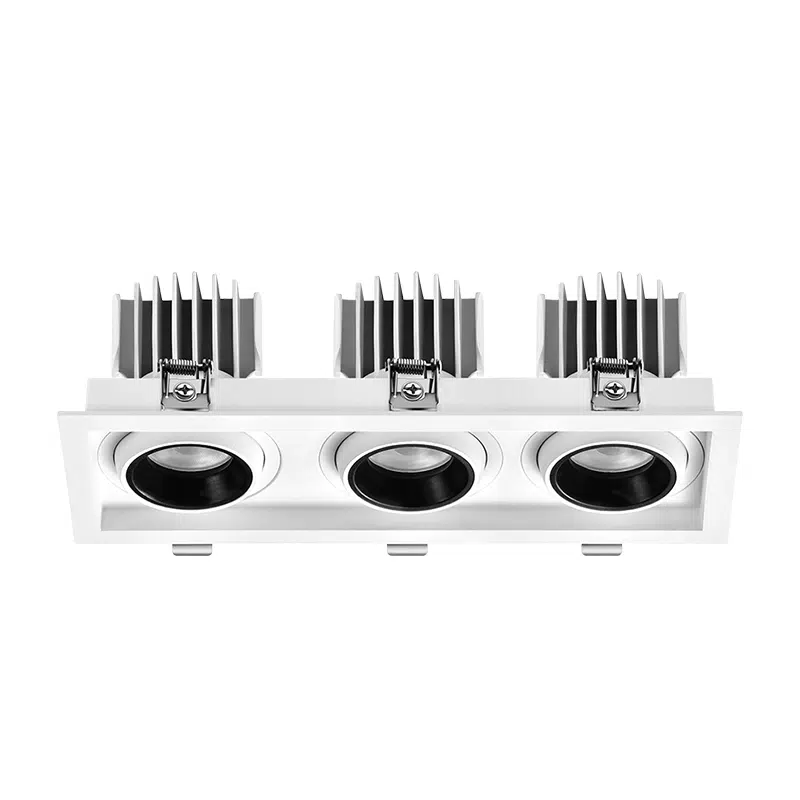

| Model |
SG80303100S |
|---|---|
| Power |
3x20W |
| Beam Angle |
20/24/36/45° |
| Cut-Out |
100×285mm |
| Installation |
Recessed |

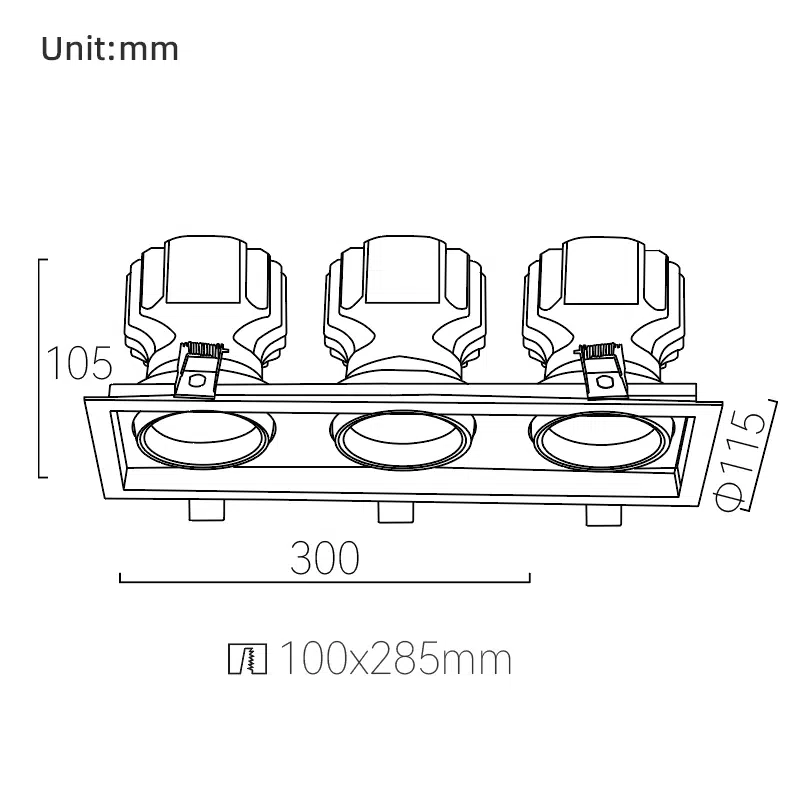

| Dimension |
115×300×H105mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
1600lmx3 |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die-casting aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 500mAx3 |
| Model |
SD052068RL |
|---|---|
| Power |
12W ,15W ,18W |
| Beam Angle |
15° ,24° ,36° ,55° |
| Cut-Out |
Φ68mm |
| Installation |
Recessed |
| Dimension |
Φ110×H102mm |
| CCT |
2700K ,3000K ,3500K ,4000K |
| CRI |
90Ra ,95Ra |
| Luminous Flux |
960lm-1440lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP54 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA/350mA/450mA |
| Model |
SD8071080R |
|---|---|
| Power |
12W |
| Beam Angle |
30°/45° |
| Cut-Out |
Φ80mm |
| Installation |
Recessed |
| Dimension |
Φ96×H75mm |
| CCT |
3000K ,4000K ,6000K |
| CRI |
80Ra ,90Ra |
| Luminous Flux |
960lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 300mA |
| Model |
ST5111W |
|---|---|
| Power |
30W |
| Beam Angle |
15°/24°/36°/55° |
| Cut-Out |
/ |
| Installation |
3-phase / 1-phase |
| Dimension |
Φ80 x 120mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
90Ra/95Ra |
| Luminous Flux |
3100lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 750mA |
| Model |
SD8271090S |
|---|---|
| Power |
15W |
| Beam Angle |
15°/24°/36°/55° |
| Cut-Out |
90x90mm |
| Installation |
Recessed |
| Dimension |
100×100×H63mm |
| CCT |
2700K/3000K/3500K/4000K |
| CRI |
RA90/RA95 |
| Luminous Flux |
1200lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Csting Aluminum |
| IP Rate |
IP20/IP65 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 350mA |
| Model |
SD8141175R |
|---|---|
| Power |
22W |
| Beam Angle |
90° |
| Cut-Out |
Φ175mm |
| Installation |
Recessed |
| Dimension |
Φ190×H60mm |
| CCT |
3000K ,4000K ,6000K |
| CRI |
80Ra ,90Ra |
| Luminous Flux |
1760lm |
| LED |
Origin Bridgelux COB |
| Color |
White / Black / Custom |
| Surface finish |
Powder Coating |
| Material |
Die Casting Aluminum |
| IP Rate |
IP20 |
| Input Voltage |
AC220-240V |
| Vf & If |
30-42V 500mA |
